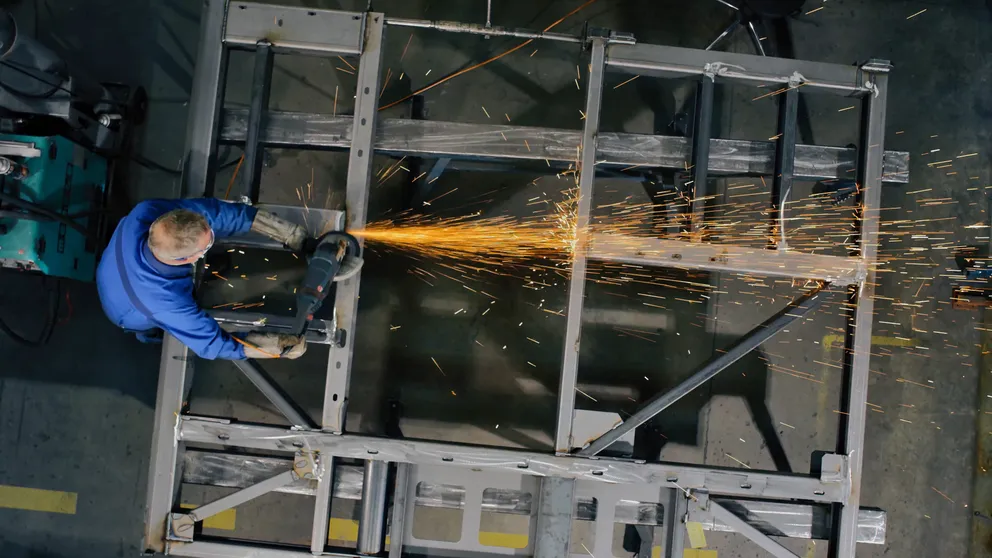

Frame and chain track carrier construction
Frames form the supporting framework of the oven and provide the necessary stability. Chain track carriers serve as guide rails - around 300 meters of chain track are installed per system. The floor insulation ensures reliable sealing and supports efficient heat storage. Individually manufactured components such as racks, fan frames and roller stands are also used. Production is carried out using modern welding technology: a welding robot at the Esseratsweiler site, for which €780,000 was invested, enables efficient and flexible production thanks to two production cells, high load capacity and automatic self-cleaning. In addition, the option of offline programming noticeably increases productivity and quality.
Information
Welding robots
Technical data
- Welding process: MAG welding (with wire feed)
- Wire diameter: 1.2 mm
- Clamping/reach: 2x 7.5 meters (1,500-7,500 mm)
- 2 spiral bearings (pivot bearings) WH-3.000 per working area, each with a load capacity of 3,000 kg
- X-axis: 1 meter lowerable for extended movement radius
- Z-axis: 1 meter adjustable for more flexibility
- Self-cleaning: Automatic and individually adjustable
- Component search function via wire
- Offline programming: Possible via CAD/STEP file in the office
- Maximum switch-on time: 360 A at 100 % power (continuous)
Production advantages
- Set-up time bridging: Production continues during set-up work
- Part size: Large and complex assemblies are also possible
- Flexibility: In length and width of the components
- Faster operation thanks to offline programming
- More intuitive operation with 3D model (STEP file)
- No interruption to production due to programming work
