DORNIER PROTOS® TP – Tape production line

The DORNIER PROTOS® TP/TPD tape production line is designed for the efficient manufacture of high-quality, unidirectional fiber-reinforced tapes. These tapes can either be stabilized with binder material or completely impregnated with a thermoplastic matrix. The system has a modular design, making it ideal for different processes and materials.

Applications Consulting appointment

Your browser does not support the video tag.

Product details

Why DORNIER?

Continuous production

Our DORNIER PROTOS® TP/TPD tape production line works roll-to-roll in a highly productive continuous process.

Wide range of materials

The extrusion tool allows the processing of a wide range of thermoplastic matrix materials.

High flexibility

With DORNIER PROTOS® TP, fully impregnated thermoplastic UD tapes / thermoplastic prepregs can be produced. For the manufacturing of binder-fixed dry tapes and spread tapes, PROTOS® TPD variant is available.

Intuitive operation

The machine parameters can be set centrally. Recipe management reduces set-up times when changing items.

Fully integrated production

In combination with PROTOS® TW tape weaving machine, high-performance flat semi-finished products can be produced.

Precise fiber orientation

The innovative spreading technology allows precise and reproducible adjustment of the geometric properties of the spread fiber material.

Service with a lifetime guarantee

With commissioning, we offer you comprehensive support to continuously improve your processes. We guarantee service and maintenance options for all our machines over their entire life cycle.

Service

Technical data

Machine speed

Up to 15 m/min

Resulting tape

PROTOS® TP: Fully impregnated UD tape / thermoplastic prepreg
PROTOS® TPD: Bindered dry tape / spread tow

Matrix materials

PROTOS® TP: Thermoplastic granulate material for melt impregnation
PROTOS® TPD: Water based binder suspension for binder fixation

Fiber materials

Carbon fiber
Glass fiber
Aramid fiber

Downloads

Download the brochure for our Composite Systems here.

Brochure Composite Systems
14.6 MB
Fotoshooting_Personal_Ausbildung_Composite Systems (5).jpg

Your contacts for DORNIER Composite Systems®

Contact us

Consulting & Sales

For all questions relating to the tendering and purchase of a new composite machine or system.

Send e-mail
+49 8382 703 1653

Service & Technology

For all questions and support in the ongoing operation of your DORNIER composite machine or system.

Send e-mail
+49 8382 703 1312

Applications

The end products of DORNIER Composite Systems® are used in various industries, including aerospace, automotive, mechanical engineering, medical technology and the sports industry. Our flexible solutions for the production of fiber composite semi-finished products enable the manufacture of highly resilient, lightweight components and support the production of carbon and glass fiber components for the most demanding applications.

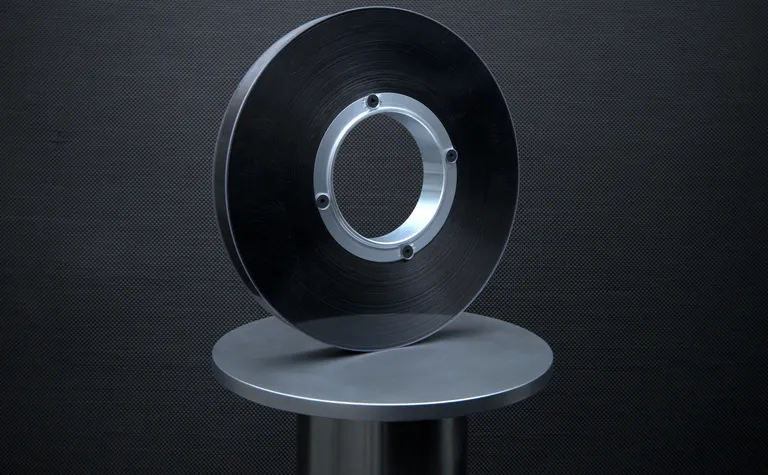

Tapespule_Carbon_Composite_Systems (1).jpg

Dry tapes & thermoplastic UD tapes

Fiber-reinforced tapes for fabric production or alternative processing.
